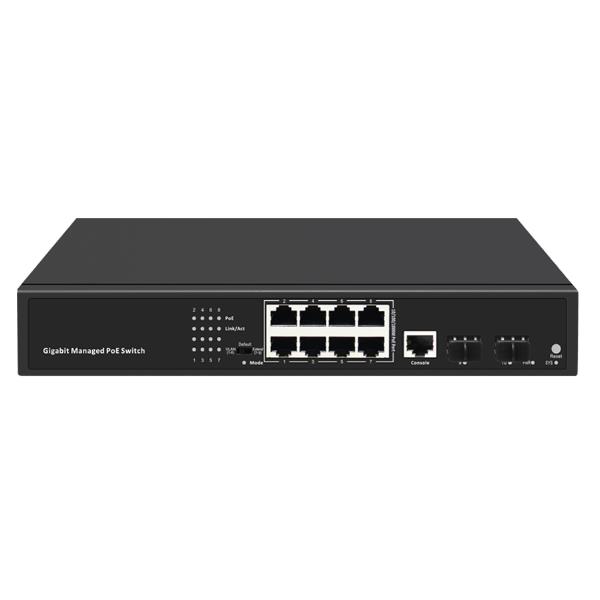

FS-8CHPOEG

Specifications

I/O Interface

Power

AC 100-240V 50/60Hz

Ethernet

8 Port 10/100/1000M PoE

2 Port 1000M RJ45 Uplink

Performance

Switching Capacity

20Gbps

Throughput

14.88Mpps

Packet Buffer

1.5Mbit

MAC Address

2K

Jumbo Frame

9216Kbytes

Transfer Mode

Store and forward

MTBF

100000 hour

Standard

Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3x (Flow control)

PoE Protocol



IEEE802.3af 15.4W

IEEE802.3at 30W

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-4 (EFT)

EN61000-4-5 (Surge)

Network Medium



10Base-T : Cat345 or above UTP(100m)

100Base-TX : Cat5 or above UTP(100m)

1000Base-TX : Cat5 or above UTP(100m)

Protection

Security Certificae

CEFCCRoHS

Environment

Working Environment

Working Temperature-20~50°C

Storage Temperature-40~85°C

Working Humidity 10%~90%non-condensing

Storage Temperature5%~90%non-condensing

Working HeightMaximum10,000 feet

Storage heighMaximum 10,000 feet

Indication

LED Indicators

PWRpower supply),1-10 GreenLink&Data

Mechanical

Structure Size

Product Dimension (L*W*H):   220*161*36.5mmm

Package Dimension (L*W*H): 303*190*60mm

N.W0.9kg

G.W1.2kg

Packing Info

Carton MEAS620*320*402mm

Packing Qty20 units

Packing Weight25KG

Power Voltage

Power Input Voltage AC 100-240 V

Power supply52V2.3A

Package List

Switch 1 pcs, Power cord 1 pcs, User   manual 1 pc, Certification 1 pc

Ordering Info

FS-8CHPOEG

10-Ports Gigabit PoE Switch
