Key Features
Automatic Wireless Connection, Plug and Play

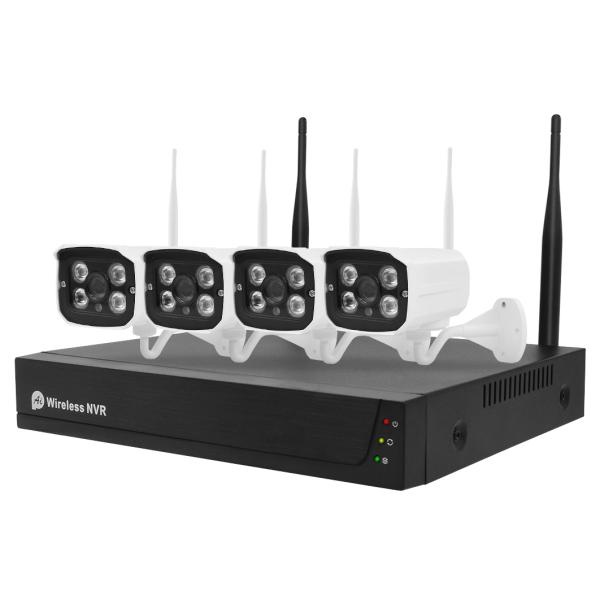

1080P H.265+ wireless network recorder and 4 1080P wireless cameras
In open space without interference transmission distance up to 800 meters
Insert professional surveillance Wireless board, with stronger anti-interfere ability
One-push to configure
Support alarm push motion detection and alarm output(voice/email/ FTP etc.)
AI Human detection
Support Android/Apple cell phone or pad by LAN & WAN visit and control
P2P IP PRO, fluent and fast remote access
Suit to homes, offices, small businesses & retail stores
Easy to Install, User-Friendly Operation
Specification
IP Camera Specification：
Model | FS-AI4WK200 |
2.0MP Wireless IP Camera | |
Image sensor | 1/2.9" 2.0M Pixel CMOS |
Lens | 4 mm, horizontal field of view: 75° |
Lens Mount | M12 |
Min. Illumination | Color：0.01Lux@(F1.2，AGC ON) B/W：0.001Lux@(F1.2，AGC ON）,0Lux @（IRled ON) |
S / N ratio | ≥39dB |
Shutter speed | 1/5 - 1/20,000s， |
Day & Night | Day / Night / External control（IR Cut Filter） |
AGC | Auto / Manual |
White balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
Wide dynamic range | Digital Wide dynamic range |
Digital noise Reduction | 2DNR,3DNR |
Video Compression | |
Audio Compression | G711，PCM |
Max.Image Resolution | |
Image Resolution | Main stream （1920x1080、1280×960、1280×720、720×576、640×480） |
sub-stream （640×480、352×288、320×240、176×144） | |
Bit rate | CBR/VBR, bit rate：32Kbps~10Mbps variable |
Motion detect | Support |
Privacy Zone Masking | 4 privacy masks programmable |
P2P | Android、IOS |
Protocols | TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P |
Onvif | Non- Support |
Wireless | Frequency:2.4G |
Transmission distance :More than 800 meters with no obstacle， More than 30 meters if penetrate the wall， The actual transmission distance according to the situation | |
Power | 12VDC@1A |
Dimensions | 38x38x5mm |
Working Temperature | -30°C ~60°C, Humidity≤90%RH(Unsupport-condensation) |
NVR Specification:
Model | FS-AI4WK200 | |
4CH Wireless 1080P HD-NVR | ||
System | Main processor | Hi3536D |
Operating System | Embedded Linux | |
Video | Video compression | H.265 High Profile/ H.264 Main Profile |
Video output | 1080P | |
Video input(IP) | 4*1080P/4*960P/4*720P | |
Audio | Audio compression | G.711 |
intercom | None | |
Record Playback | Recording mode | Manual/Alarm/Video Detection/Continuous |
Local Playback | 1*1080P | |
Storage Backup | Record Storage | network |
Backup mode | Network backup, USB hard disk | |
Network Control | Protocol | TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIF,SADP,P2P |
Wireless | Frequency | 2.4G |
Antenna Structure | 2 × 2MIMO | |
Distance | More than 800 meters with no obstacle，more than 30 meters if penetrate the wall, the actual transmission distance according to the situation | |
Interface | Video output | 1ch HDMI, 1ch VGA output |
Audio I/O | None | |
Alarm I/O | None | |
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |
USB | 2*USB 2.0 port | |
Hard disk | 1 SATA(Up to 4TB) | |
Other | Power supply | DC +12V /2A |
Power Consumption | 5W（Without HDD） | |
Work environment | Temperature:-10℃－＋55℃, Humidity:10%-90%RH | |
