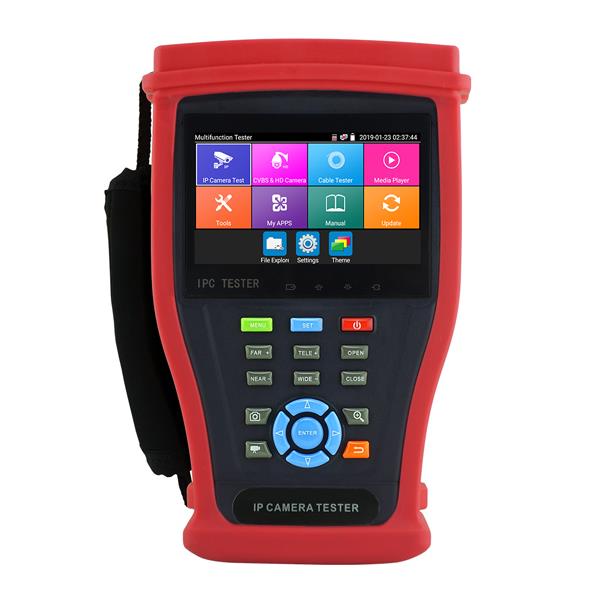

LCD | Model | FS-T4HTCP60 |
Display | New 4.3 inch IPS touch screen , 960*540 resolution |
Video Mode | CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement* |
PTZ control,RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
CVBS loop test | the tester send and receive color bar generator signal , check BNC cable |
IP Camera Test 4k/H.265/H.264 | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
Rapid Video | Auto view the video, create testing report |
Hik test tool | activate hikvision camera, modify the user name, password and IP parameters |
Dahua test tool | Dahua camera test, modify the user name, password and IP parameters |
IP& CVBS Test | IP& CVBS test at the same time ,converter test from analog to digital with dual test window |
Coaxial HD Test | 8MP TVI camera test,3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu |
8MP CVI camera test,3840 x 2160P 12.5/15 FPS,UTC control & call OSD menu |
8MP AHD test, 3840x2160P 15 FPS, UTC control & call OSD menu |
8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu |
HDMI Input | 1 channel HDMI input, support 1080P * |
Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back |
Analog Video out | Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable |
Power output | PoE power output | 48V PoE power output, max power 25.5W |
DC12V power | DC12V/3A power output |
Cable test | TDR cable test | BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM |
Cable tracer | search BNC cable, network cable and telephone cable from the mess cables |
UTP cable test | Test UTP cable connection status and display on the screen. Read the number on the screen |
RJ45 cable TDR test | Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M. |
TesterPlay | Screen projection：tester, mobile phone and PC display at the same time (For android version mobile phone) |
Network test | Trace route, Link monitor , DHCP server, port flashing, Ping test |
Wi-Fi | Built in WIFI,speeds150M,display wireless camera image |
Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
Data monitor | Captures and analyzes the command data from controlling device,also can send hexadecimal |
PoE test | Measurement POE switch or PSE power supply voltage and cable connection status |
Drop-down menu | You can select PoE power switch ,IP setting,CVBS, LAN info , HDMI IN functions etc in any interface |
External power supply | DC 12V 2A |
Battery | Built-in 7.4V Lithium polymer battery, 4600mAh |
Rechargeable | After charging 5~6 hours, normal working time 10 hours |
Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc |
Auto off | 1-30 (mins) |
Working Temperature | -10℃---+50℃ |
Working Humidity | 30%-90% |
Dimension/Weight | 215mm x 127mm x 53mm / 0.82kg |
