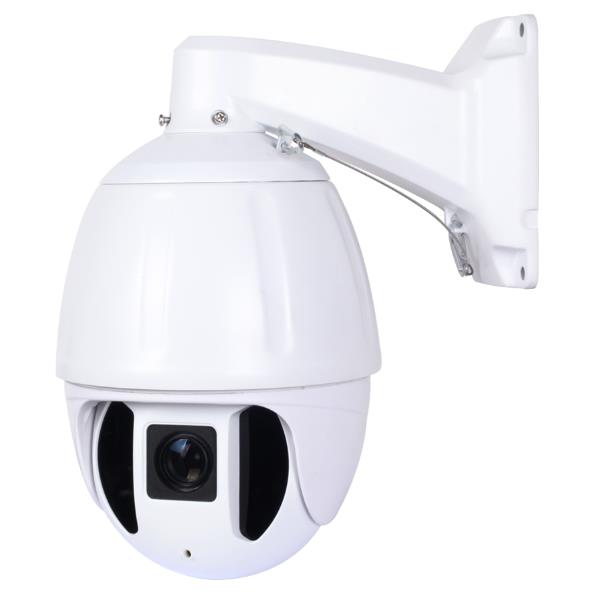

| Model | PT7FH20XH800 | |
| 8MP(4K) | Camera | |
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS Sensor | |
| Main Processor | Hi3516A | |
| Horizontal Resolution | 8MP | |
| Effective Pixels | 3840(H)*2160(V) | |
| TV System | PAL/NTSC | |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | |
| Compression | H.265/H.264 | |
| S/N Ratio | >50db | |
| PTZ | ||
| Horizontal Rotation Speed | 200°/S | |
| Horizontal Rotation Range | 0°~360° | |
| Tilt Rotation Speed | 100°/s | |
| Tilt Rotation Range | 0°~90° | |
| Preset Points | 220 | |
| Guard Tours | 3 groups | |
| Guard Points | Max.16 points | |
| Lens | ||
| Focus Length | 4.7mm-94mm | |
| Focus Control | 20X Optical Zoom | |
| Night Vision | ||
| Infrared LED | ￠42x11PCS IR LEDS,+4PCS LED Laser | |
| IR Range | 200m | |
| Day-night mode | AUTO | |
| Network | ||
| Network protocol | TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP,P2P | |
| ONVIF | Support ONVIF 2.4 | |
| P2P | YES, Support QR Code | |
| Network interface | Built-in RJ45 network interface,support 10M/100M IP DATA | |
| Main Stream1 | 3840*2160@20fps | |
| Main Stream2 | 2592*1536@25fps 2560*1440@25fps | |
| Main Stream3 | 1920*1080@25fps 1280*720@25fps | |
| IE Brower | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari | |
| Smart Phone | iPhone, iPad, Android, Android Pad | |
| Interface | ||
| Audio | Optional | |
| WDR | 120DBWDR | |
| Alarm | / | |
| POE | Optional | |
| General | ||
| Housing | IP67+Vandalproof | |
| Operating Temperature | Indoor: 0°~ +40° Outdoor: -40°~ +60° | |
| Operating Humidity | ≤90% Non Condensing | |
| Power | DC12V 4A | |
| Lightning Protection | Transient voltage 6000V | |
| Weight | 10.0Kgs | |
