Key Features
Automatic Wireless Connection, Plug and Play

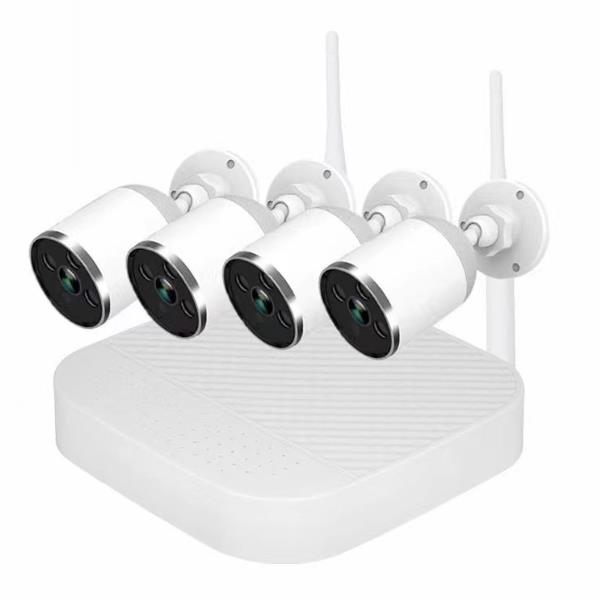

3MP H.505+ wireless network recorder and 4pcs 3MP wireless cameras
In open space without interference transmission distance up to 800 meters
Insert professional surveillance Wireless board, with stronger anti-interfere ability
One-push to configure
Support alarm push motion detection and alarm output(voice/email/ FTP etc.)
AI Human detection
Support Android/Apple cell phone or pad by LAN & WAN visit and control
P2P IP PRO, fluent and fast remote access
Suit to homes, offices, small businesses & retail stores
Easy to Install, User-Friendly Operation
Specification
IP Camera Specification：
|
Model |
FS-AI4WK300 |
|
3.0MP Wireless IP Camera |
|
|
Image sensor |
1/2.9" 3.0M Pixel CMOS |
|
Lens |
4 mm, horizontal field of view: 75° |
|
Lens Mount |
M12 |
|
Min. Illumination |
Color：0.01Lux@(F1.2，AGC ON) B/W：0.001Lux@(F1.2，AGC ON）,0Lux @（IRled ON) |
|
S / N ratio |
≥39dB |
|
Shutter speed |
1/5 - 1/20,000s， |
|
Day & Night |
Day / Night / External control（IR Cut Filter） |
|
AGC |
Auto / Manual |
|
White balance |
Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
|
Wide dynamic range |
Digital Wide dynamic range |
|
Digital noise Reduction |
2DNR,3DNR |
|
Video Compression |
|
|
Audio Compression |
G711，PCM |
|
Max.Image Resolution |
2560×1440@15fps |
|
Image Resolution |
Main stream （2560×1440、1920x1080、1280×960、1280×720、720×576、640×480） |
|
sub-stream （640×480、502×288、320×240、176×144） |
|
|
Bit rate |
CBR/VBR, bit rate：32Kbps~10Mbps variable |
|
Motion detect |
Support |
|
Privacy Zone Masking |
4 privacy masks programmable |
|
P2P |
Android、IOS |
|
Protocols |
TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P |
|
Onvif |
Non- Support |
|
Wireless |
Frequency:2.4G |
|
Transmission distance :More than 800 meters with no obstacle， More than 30 meters if penetrate the wall， The actual transmission distance according to the situation |
|
|
Power |
12VDC@1A |
|
Dimensions |
38x38x5mm |
|
Working Temperature |
-30°C ~60°C, Humidity≤90%RH(Unsupport-condensation) |
NVR Specification:
|
Model |
FS-AI4WK300 |
|
|
4CH Wireless 3MP HD-NVR |
||
|
System |
Main processor |
Hi5036D |
|
Operating System |
Embedded Linux |
|
|
Video |
Video compression |
H.505 High Profile/ H.504 Main Profile |
|
Video output |
3MP/1080P |
|
|
Video input(IP) |
4*3MP/4*1080P/4*960P/4*720P |
|
|
Audio |
Audio compression |
G.711 |
|
intercom |
None |
|
|
Record Playback |
Recording mode |
Manual/Alarm/Video Detection/Continuous |
|
Local Playback |
1*3MP |
|
|
Storage Backup |
Record Storage |
network |
|
Backup mode |
Network backup, USB hard disk |
|
|
Network Control |
Protocol |
TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIF,SADP,P2P |
|
Wireless |
Frequency |
2.4G |
|
Antenna Structure |
2 × 2MIMO |
|
|
Distance |
More than 800 meters with no obstacle，more than 30 meters if penetrate the wall, the actual transmission distance according to the situation |
|
|
Interface |
Video output |
1ch HDMI, 1ch VGA output |
|
Audio I/O |
None |
|
|
Alarm I/O |
None |
|
|
Network interface |
1*RJ45 10M/100M Adaptive Ethernet port |
|
|
USB |
2*USB 2.0 port |
|
|
Hard disk |
1 SATA(Up to 4TB) |
|
|
Other |
Power supply |
DC +12V /2A |
|
Power Consumption |
5W（Without HDD） |
|
|
Work environment |
Temperature:-10℃－＋55℃, Humidity:10%-90%RH |
|
