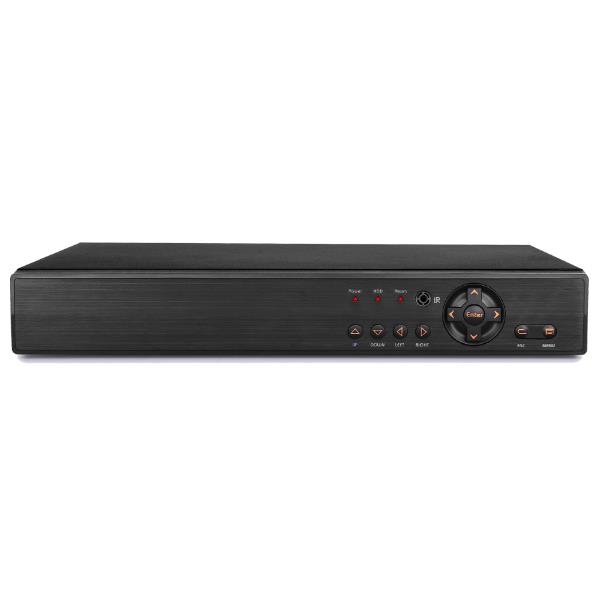

| Model | FS-XVR1673MN |
| System | |
| Main Processor | NT98321 |
| Operating System | Embedded LINUX |
| Video | |
| Code | H.265+/H.265/H.264 |
| Monitor Quality | VGA：HD；HDMI：HD |
| Encode Capability | 16*5M-N |
| Multi-mode Input |
Analog：16*5M-N(12fps), Mixed Mode: 16*5M-N+4CH 1080P(IP) Network：16*1080P；4*5M |
| Motion Detection | Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only) |
| Playback | |
| Record Mode | manual>alarm>motion detection>timing |
| Local Playback | 8CH Max |
| Video Search | time,date,event,channel search |
| Video Storage | Local HDD ,Network |
| Backup Mode | Network backup,USB portable HDD,USB burner |
| Port | |
| Video Input | 16CH BNC |
| Video Output | 1CH VGA,1ch HDMI,1CH BNC Output |
| Audio Input | 2CH |
| Audio Output | 1CH |
| BNC Output | Support |
| Network Port | RJ45 10M/100M self-adaptive Ethernet port |
| PTZ Control | 1 RS485;support multi kinds of PTZ protocol |
| USB Port | 2*USB2.0 |
| HDD Port | 1* SATA ports(Up to 10TB) |
| Power | 12V2A |
| Weight | 2.0kg (Without HDD) |
