Key Features

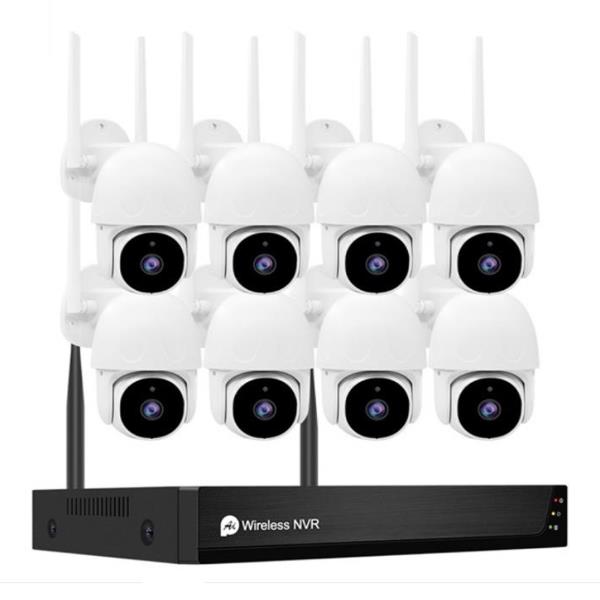

8PCS ultra-low-illumination 1080P HD Wireless IP cameras Pan/Tilt + 1PCS 1080P HD Wireless NVR, clear image assured
Adopt 2.4G wireless video transmission, no wiring bothers
Adopt Smart transfer technology, steady anti-interference wireless transmission capability and smart repeater functions assure the stability of wireless transmission
Plug and play. NVR can output images after equipment connects to power. Easy to install and use
Refine the security of WiFi wireless transmission, ensure the safety and reliability of personal privacy
Specially use strengthened wireless module, wireless transmission distance reaches over 200M without barriers, over 50M through walls, stable and reliable
Support Android, iOS smartphones remote control, master safety anytime and anywhere
1/2.9”low-illumination 2MP image sensor, clear night vision, exquisite picture by day
NVR outputs 1080P images, more detailed images and higher definition
Support PTZ control, pan 320°, tilt 90°, free rotation
Support 4CH motion detection alarm, monitor effectively personnel intrusion
Support 4 private zones, effectively avoiding sensitive monitoring zones, organizing cameras at random
Adopt H.265 high profile video encoding compression technology, assure lower data stream compression bandwidth, smaller wireless channel pressure, more stable transmission
Smart infrared control technology, automatic adjustment of infrared intensity at night to prevent image overexposure
IP66 protection grade, super waterproof, efficient dust proof
Specification
WiFi PTZ Cameras Parameters：
Model | FS-AIP8WK200 |
1080P HD Wireless PTZ Security Cameras | |
Image Sensor | 1/2.9" 2M Pixel CMOS |
Min. Illumination | 0.1Lux@F1.2（color mode）；0.05 Lux@F1.2（B&W mode）；0Lux （IR LED on） |
S/N Ratio | ≥39dB |
Electronic Shutter | 1/5 - 1/20,000s，support slow shutter |
Day&Night Mode | auto ICR filter color to black，fixed black & white，fixed color，external control |
Gain Control | auto/manual |
White Balance | auto, indoor, outdoor, sodium lamp mode. manual |
Wide Dynamic Range | support digital wide dynamic |
Digital Noise Reduction | support DNR,3DNR |
Video Compression | H.265 Main profile/H.264 Main profile/M-JPEG |
Audio | audio compression：G711，PCM 1CH input: linear, impedance 1KΩ; 1CH output: linear, impedance 600 |
Max. Resolution | 1920x1080@20fps |
Video Resolution | main stream：1920x1080、1280×720、720×576、640×480 |
sub-stream：640×480、480×360、352x288、176x144 | |
Output Bit Rate | constant bit rate（CBR）or variable bit rate (VBR), bit stream available range：32K~10M |
Motion Detection | support，8 motion detection zones |
Private Zone | support，8 customized zones |
PT Control | pan 320°，tilt 90°，support 254 preset points |
Network Protocol | TCP/IP，HTTP，NTP，IGMP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DNS |
Wireless Spectrum | 2.4G |
Wireless Standard | IEEE802.11b,802.11g,802.11n |
Wireless Transmission Distance | up to 200M transmission distance without barriers, over 50M through walls, real transmission distance depends on environments |
Power Supply | 12VDC@1A |
Protection Grade | IP64, TVS 3000V thunder proof, electrical surge proof, voltage transient proof |
Size | 160×90×150mm |
Weight | ≤1kg |
Working Temperature | -30°C ~50°C |
Working Humidity | 0%-90% RH（no condensation） |
Wireless NVR Parameters：
Model | FS-AIP8WK200 | |
8CH WIFI 1080P HD NVR | ||
System | Main processor | industrial-grade embedded micro controller |
Operating system | embedded LINUX operating system | |
Video Specifications | Image decode standard | H.265 Main Profile Lever 4.2 |
Video output | 1080P@60fps | |
Video input | 8*1080P/8*960P/8*960P | |
Audio Specifications | Decode standard | G.711 |
Voice intercom | / | |
Record Playback | Recording method | manual recording, motion detection recording, timing recording, alarm recording |
Recording playback | 8CH 960P or 8CH 1080P synchronous playback，playback speed: 1/8,1/4,1/2,2X,4X | |
Storage Backup | Occupied space/CH | video：1080P 20G/day； |
Backup method | support HD storage and U disk backup | |
Network | Network protocol | TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,P2P |
Mobile phone APP | support TUYA app | |
Browser | support IE browser | |
Wireless | Wireless module | built-in professional controlled wireless receiving module |
Antenna | 2PCS 5dB antenna | |
Transmission distance | up to 300M transmission distance without barriers，real transmission distance depends on environments | |
Interface | Video input | 8CH 1080P network input |
Video output | 1CH VGA output, 1CH HDMI output | |
Audio input | / | |
Audio output | 1CH | |
Alarm input | / | |
Alarm output | / | |
Network interface | RJ45 10M/100Mbps adaptable ethernet interface | |
USB | 2 USB 2.0 interfaces | |
HDD | internal support 1 SATA HDD(up to 6T) | |
Others | Power supply | DC +12V /3A |
Power consumption | 3W（without HDD and PoE） | |
Working temperature | -10℃－＋55℃ | |
Working humidity | 10%－90% | |
