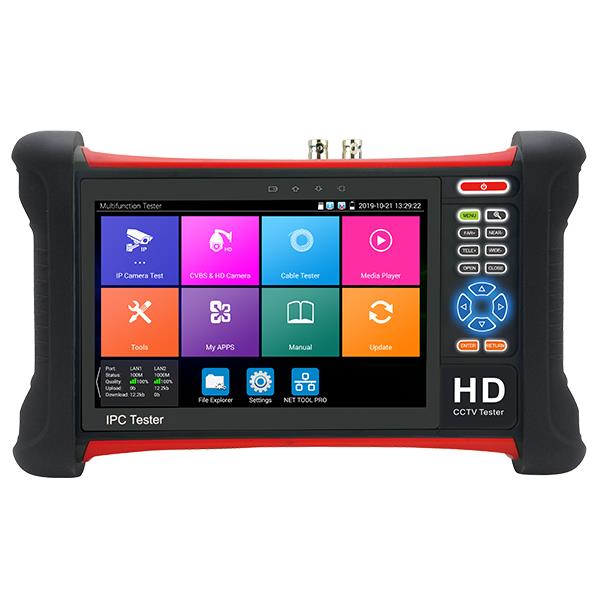

LCD | Model | FS-T7HTCPX7 | |
Display | New 7 inch Retina touch screen, 1920*1200 resolution | ||
Video Mode | CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) | |
Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement | |||
PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |||
CVBS loop test | the tester send and receive color bar generator signal, check BNC cable | ||
IP Camera Test 4k/H.265/H.264 | IP Discovery/Quick ONVIF/IPC test /RTSP play / Client APK | ||
Rapid Video | Auto view the video, create testing report | ||
Hik test tool | Activate hikvision camera, modify the user name, password and IP parameters | ||
Dahua test tool | Dahua camera test, modify the user name, password and IP parameters | ||
IP& CVBS Test | IP& CVBS test at the same time, converter test from analog to digital with dual test window | ||
Coaxial HD Test | 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control & call OSD menu * | ||
8MP CVI camera test,3840 x 2160P 12.5/15 FPS,UTC control & call OSD menu * | |||
8MP AHD camera test,3840 x 2160P 15 FPS, UTC control & call OSD menu* | |||
8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu* | |||
HDMI Input | 1 channel HDMI input, support 1080P | ||
Zoom Image | 4 x zoom, to enlarge image, Screen snapshot, record, save ,view and record and play back | ||
Analog Video out | Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable | |
Power output | PoE power output | 48V PoE power output, max power 25.5W | |
DC12V power | DC12V/3A power output | ||
Cable test | BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable' s length and short circuit. measurement range 1.2KM * | ||
Cable tracer | Search BNC cable, network cable and telephone cable from the mess cables | ||
UTP cable test | Test UTP cable connection status and display on the screen. Read the number on the screen | ||
RJ45 cable TDR test | Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M. | ||
TesterPlay | Screen projection：tester, mobile phone and PC display at the same time (For android version mobile phone) | ||
Network test | Trace route, Link monitor, DHCP server, port flashing , Ping test | ||
Wi-Fi | Built in WIFI, speeds150M,display wireless camera image | ||
Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone | ||
Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal | ||
PoE test | Measurement POE switch or PSE power supply voltage and cable connection status | ||
Drop-down menu | You can select PoE power switch, IP setting, CVBS, LAN info , HDMI IN functions etc in any interface | ||
External power supply | DC 12V 2A | ||
Battery | Built-in 7.4V Lithium polymer battery ,5000mAh | ||
Rechargeable | After charging 5~6 hours, normal working time 10hours | ||
Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc | ||
Auto off | 1-30 (mins) | ||
Working Temperature | -10℃---+50℃ | ||
Working Humidity | 30%-90% | ||
Dimension/Weight | 255mm x 160mm x 46mm / 0.95Kg | ||
