Key Features

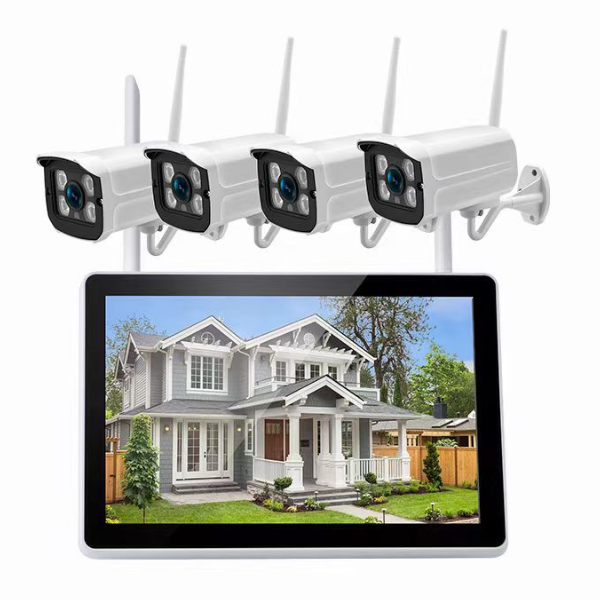

4PCS 1080P HD Wireless IP cameras + 1PCS 1080P HD Wireless NVR with LCD Screen
Adopt 2.4G wireless video transmission, no wiring bothers
Adopt Smart transfer technology, steady anti-interference wireless transmission capability and smart repeater functions assure the stability of wireless transmission
Plug and play. NVR can output images after equipment connects to power. Easy to install and use
Refine the security of WiFi wireless transmission, ensure the safety and reliability of personal privacy
Specially use strengthened wireless module, wireless transmission distance reaches over 200M without barriers, over 50M through walls, stable and reliable
Support Android, iOS smartphones remote control, master safety anytime and anywhere
1/2.9”low-illumination 2MP image sensor, clear night vision, exquisite picture by day
NVR outputs 1080P images, more detailed images and higher definition
Support 4CH motion detection alarm, monitor effectively personnel intrusion
Adopt H.265 high profile video encoding compression technology, assure lower data stream compression bandwidth, smaller wireless channel pressure, more stable transmission
Smart infrared control technology, automatic adjustment of infrared intensity at night to prevent image overexposure
IP66 protection grade, super waterproof, efficient dust proof
Specification
IP Camera Specification：
|
Model |
FS-AILB4WK200 |
|
2.0MP HD Wireless IP Camera |
|
|
Image sensor |
1/2.9" 2M Pixel CMOS |
|
Min. Illumination |
Color：0.1Lux@(F1.2，AGC ON) B/W：0.005Lux@(F1.2，AGC ON）,0Lux @（IRled ON) |
|
S / N ratio |
≥39dB |
|
Shutter speed |
1/5 - 1/20,000s，support slow shutter |
|
Day & Night Mode |
auto ICR filter color to black，fixed black & white，fixed color，external control |
|
AGC |
Auto / Manual |
|
White balance |
Auto/Manual /Indoor/Outdoor/Sodium lamp |
|
Wide dynamic range |
Digital Wide dynamic range |
|
Digital noise Reduction |
DNR,3DNR |
|
Video Compression |
H.265 Main profile/H.264 Main profile/M-JPEG |
|
Audio Compression |
Audio compression：G711, PCM 1CH input: linear, impedance 1KΩ; 1CH output: linear, impedance 600 |
|
Max.Image Resolution |
|
|
Image Resolution |
Main stream : 1920x1080、1280×720、720×576、640×480 |
|
sub-stream : 640×480、480×360、352x288、176x144 |
|
|
Bitrate |
CBR/VBR, bitrate：32Kbps~10Mbps variable |
|
Motion detect |
Support, 18*22 motion detection zones |
|
Remote Control |
Support remote control on Android & iOS mobile phone |
|
P2P |
TUYA by Android、iOS |
|
Protocols |
TCP/IP，HTTP，NTP，IGMP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DNS |
|
Network Interface |
/ |
|
Wireless |
Frequency:2.4G |
|
Transmission distance :More than 200 meters with no obstacle， More than 50 meters if penetrate the wall. The actual transmission distance according to the situation |
|
|
Power |
12VDC@1A |
|
Working Temperature |
-30°C ~50°C, Humidity≤90%RH(Unsupport-condensing) |
NVR Specification:
|
Model |
||
|
4CH Wireless HDNVR with LCD Screen |
||
|
System |
Main processor |
industrial-grade embedded micro controller |
|
Operating System |
Embedded Linux |
|
|
Video |
Video compression |
H.265 Main Profile Lever 4.2 |
|
Video output |
1080P@60fps |
|
|
Video input(IP) |
4*1080P/4*960P/4*960P |
|
|
Audio |
Audio compression |
G.711 |
|
intercom |
None |
|
|
Record & playback |
Recording mode |
manual recording, motion detection recording, timing recording, alarm recording |
|
Local Playback |
4CH 960P or 4CH 1080P synchronous playback，playback speed: 1/4,1/2,2X,4X |
|
|
Storage & Backup |
Occupied space/CH |
video：1080P 20G/day |
|
Backup mode |
support HD storage and U disk backup |
|
|
Network Control |
Protocol |
TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,P2P |
|
Mobile phone |
Support Android & iPhone smartphone monitoring |
|
|
Browser |
support IE browser |
|
|
Wireless |
Wireless module |
built-in professional controlled wireless receiving module |
|
Antenna |
2PCS 5dB antenna |
|
|
Transmission Distance |
More than 200 meters with no obstacle, the actual transmission distance according to the situation |
|
|
Interface |
Video output |
1CH HDMI |
|
Audio input |
None |
|
|
Audio output |
1CH |
|
|
Video input |
4CH 1080P network input |
|
|
Alarm I/O |
None |
|
|
Network interface |
1*RJ45 10M/100M Adaptive Ethernet port |
|
|
USB |
2*USB 2.0 port |
|
|
Hard disk |
1 SATA(Up to 6TB) |
|
|
Other |
Power supply |
DC +12V /3A |
|
Power Consumption |
3W（Without HDD） |
|
|
Work environment |
Temperature:-10℃－＋55℃, Humidity:10%-90%RH |
|
