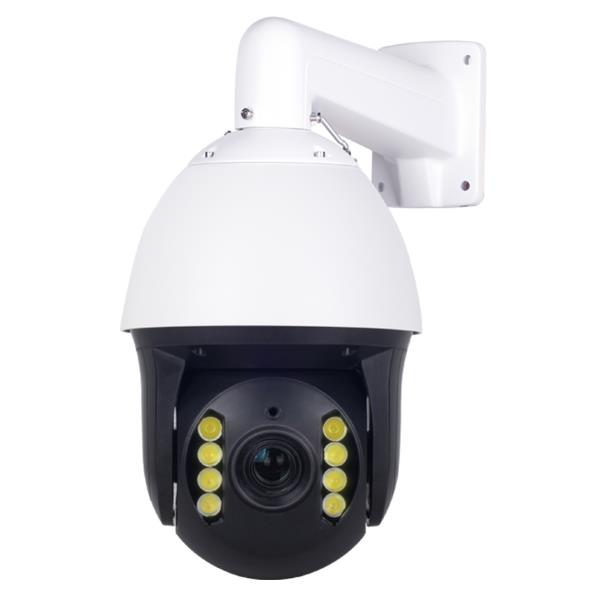

| Model | PTAI7FH20XH500 | |
| Camera | ||
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS Sensor | |
| Main Processor | Hi3516EV300 | |
| Horizontal Resolution | 5MP | |
| Effective Pixels | 2592(H)*1944(V) | |
| TV System | PAL/NTSC | |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | |
| Compression | H.265/H.264 | |
| S/N Ratio | >50db | |
| PTZ | ||
| Horizontal Rotation Speed | 80°/S | |
| Horizontal Rotation Range | 0°~360° | |
| Tilt Rotation Speed | 45°/s | |
| Tilt Rotation Range | 0°~93° | |
| Tracking Effective Range | 5M-45M | |
| Tracking Speed Range | 3-12KM/h | |
| 3D Tracking Region | A Single Point Trigger/1-16PCS Multipoint Trigger | |
| Preset Points | 256 | |
| Guard Tours | 3 groups | |
| Guard Points | Max.16 points | |
| Lens | ||
| Focus Length | 4.7mm-94mm | |
| Focus Control | 20X Optical Zoom | |
| Night Vision | ||
| Infrared LED | 8PCS Warm Light LED Laser | |
| IR Range | 180m | |
| Day-night mode | AUTO | |
| Network | ||
| Network protocol | TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP,P2P | |
| ONVIF | Support ONVIF 2.4 | |
| P2P | YES, Support QR Code | |
| Network interface | Built-in RJ45 network interface,support 10M/100M IP DATA | |
| Main Stream1 | 2592*1944@25fps | |
| Main Stream2 | 2560*1440@25fps 2304*1296@25fps | |
| Main Stream3 | 1920*1080@25fps 1280*720@25fps | |
| IE Brower | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari | |
| Smart Phone | iPhone, iPad, Android, Android Pad | |
| Interface | ||
| Audio Compression | G711U | |
| Voice Intercom | Built-in Two Way Audio | |
| WDR | 120DBWDR | |
| Alarm | Audio Alarm Prompt | |
| POE | Optional | |
| General | ||
| Communications Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P | |
| Private Protocol | Onvif and Hikvision | |
| Warm Light Illuminance | Adjustable | |
| Housing | IP67+Vandalproof | |
| Operating Temperature | Indoor: 0°~ +40° Outdoor: -40°~ +60° | |
| Operating Humidity | ≤90% Non Condensing | |
| Power | DC12V 4A | |
| Lightning Protection | Transient voltage 6000V | |
| Weight | 10.0Kgs | |
