【Specifications】
I/O Interface | |
Power | Input: AC 100-240V, 50/60Hz |
Ethernet | 4 Port 10/100M PoE + 1 Port 100M Ethernet Uplink |
Performance | |
Switching Capacity | 1Gbps |
Throughput | 0.744Mpps |
Packet Buffer | 448K |
MAC Address | 2K |
Jumbo Frame | 2Kbytes |
Transfer Mode | Store and forward |
MTBF | 100000 hour |
Standard | |
Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3x (Flow control) |
PoE Protocol
| IEEE802.3af （15.4W） IEEE802.3at （30W） |
Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、 EN61000-4-4 (EFT)、 EN61000-4-5 (Surge) |
Network Medium
| 10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) |
Protection | |
Security Certificae | CE、FCC、RoHS |
Environment | |
Working Environment | Working Temperature：-20~50°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet |
Indication | |
LED Indicators | PWR（power supply），SW（DIP），1-5 Green（Link&Data） |
DIP Switch | VLAN：Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on. Normal: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; The port AI mode is closed. Extend：Link extension mode, 1-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on |
Mechanical | |
Structure Size | Product Dimension (L*W*H): 200mm*118mm*44mm Package Dimension (L*W*H): 245mm*190mm*60mm N.W：0.5kg G.W：0.8kg |
Packing Info | Carton MEAS：505*320*400mm Packing Qty：20 units Packing Weight：17KG |
Power Voltage | Input Voltage ：AC 100-240 V Power supply：52V1.25A |
Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc |
Ordering Info | |

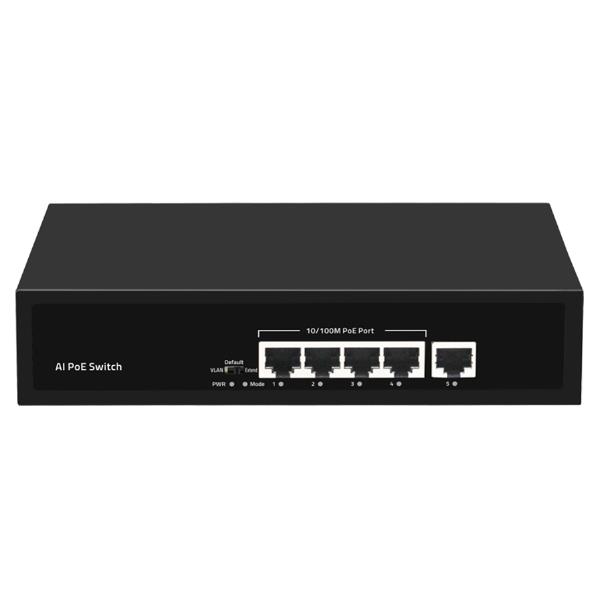

FS-4CHPOE | 5-Port 100M AI PoE Switch |
