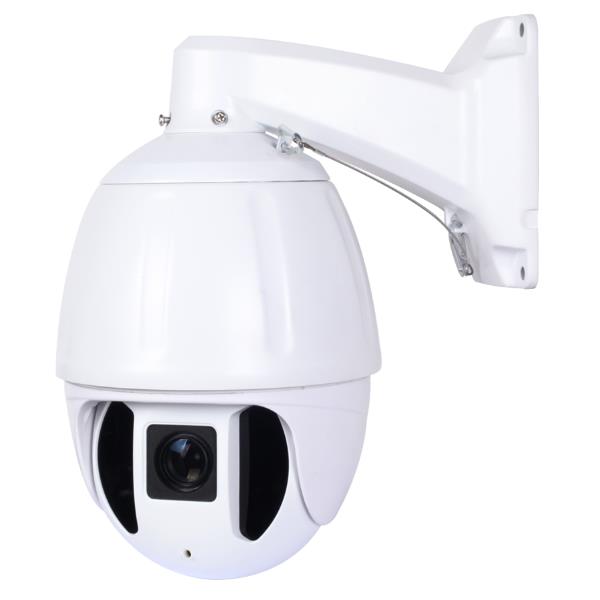

| Model | PT7FH20HTC200S |
| Camera | |
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS Sensor |
| lmagine Resolution | 2MP |
| TV System | PAL/NTSC |
| S/N Ratio | >50db |
| Video Output Mode | AHD/CVI/TVI/CVBS |
| PTZ | |
| Horizontal Rotation Speed | 200°/S |
| Horizontal Rotation Range | 0°~360° |
| Tilt Rotation Speed | 100°/s |
| Tilt Rotation Range | 0°~90° |
| Auto Flip | Support |
| Ratio Speed | Support |
| 360° Scan | Support |
| A-B Scan | Support |
| Preset Points | 220 |
| Guard Tours | 3 groups |
| Guard Points | Max.16 points |
| Lens | |
| Focus Length | 4.7mm～94mm |
| Focus Control | 20X Optical Zoom |
| Night Vision | |
| Infrared LED | ￠42x11PCS IR LEDS,+4PCS LED Laser |
| IR Range | 200m |
| Auto Control IR LED | PWM |
| Communication | |
| Communication Protocol | UTC |
| Communication interface | COAXAIL CABLE |
| RS485 | Support |
| Interface | |
| Audio | / |
| Alarm | / |
| General | |
| Weatherproof | IP66 |
| Operating Temperature | Indoor: 0°~ +40° Outdoor: -40°~ +60° |
| Operating Humidity | ≤90% Non Condensing |
| Heater & Blower | Auto temperature control |
| Power | DC12V 4A |
| Lightning Protection | Transient voltage 6000V |
| Weight | 10.0Kgs |
